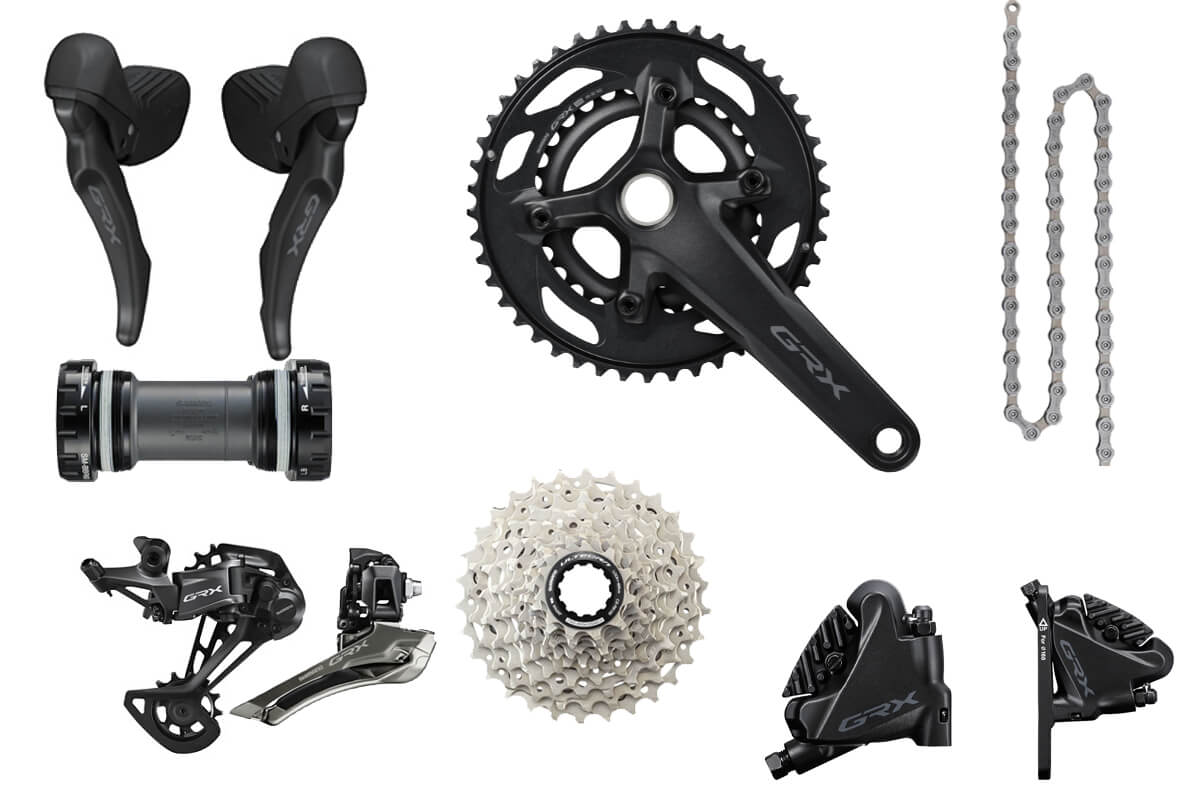

Shimano GRX 610 2x12-Speed Gravel Groupset
Gravel cycling is rooted in its simplicity, inclusivity, and curiosity. Everyone from first-timers to grizzled veterans counts on Shimano GRX, the industry’s first gravel-specific groupset, for smooth shifting, reliable braking, and exceptional gravel comfort.
The new RX610 series offers 12-speed gearing and performance at an incredible value, with thoughtful ergonomic designs and gravel-centric gearing for all manners of unpaved adventures. The 610 2x12 groupset uses a mix of mid-level components alongside top tier GRX 820 parts to deliver precise and reliable mechanical shifting with different gearing ranges to cover the full spectrum of riders and rides.
Shimano GRX RX610 Shifters
Unmatched comfort and control for mixed-terrain riding and racing. The Shimano GRX 610 is based around the Shimano 105 shifter and borrows materials from GRX 820 shifters. It delivers light and responsive shifting for mixed-terrain riding. The textured hood and anti-slip brake lever surface increase control on bumpy terrain.
Shimano BR-RX400 Brake Calipers
BR-RX400 is a flat-mount brake caliper with pre-bled hoses. Whilst they do not have ceramic pistons, as found on the top tier GRX 820 groupset. Shimano's powerful braking has been proven in gravel racing around the world. Rotors are not included, please select the size of rotor suited to your bike.
Shimano FC-RX610-Double Chainset
GRX cranks have a chainline that’s 2.5mm wider than that of Shimano’s road cranks. (Chainline is the distance from the centre-line of the bike to the middle of the chainring on a 1× setup, or to a point halfway between the two chainrings on a 2× crankset.) This increases tyre clearance and works better with the wider rear spacing found on some gravel bikes. GRX 820 Chainset features a four arm design, and the material is machined to reduce weight over other tiers of chainset.
Shimano CN-M6100 12-Speed Chain
The M6100 chain provides enhanced chain retention thanks to an extended portion of the inner plate. The new chain features quick-link assembly and SIL-TEC treatment for extended offroad durability.
Shimano GRX-RX820 Rear Derailleur
Designed specifically for use with a double chainset. The RX820 rear derailleur has an integrated chain stabiliser to deliver quieter shifting, better ground clearance and more secure chain management in rough terrain. The RD-RX820 is compatible with 11-34T and 11-36T cassettes, 12-speed SHIMANO MTB cassettes, and the chain tensioner has an ON/OFF switch for easy wheel removal.
Shimano GRX FD-RX820 12-Speed Front Derailleur
Lighter front shifting operation and easier setup for mixed-terrain riding. The Shimano GRX RX-820 front derailleur offers lighter front shifting operation and easier setup thanks to its toggle link construction and integrated cable tensioner. Features include a 2.5 mm outboard chain line design that provides wider tire clearance for mixed-terrain riding, and it accommodates a 17T front chainring range for wider gearing options.
Shimano BBR-60 Ultegra Bottom Bracket
The Shimano BBR60 Ultegra level Bottom Bracket English Thread Cups use Shimano HollowTech II technology which uses a wider outer bearing placement and larger axle diameter for increased stiffness and efficiency. While it's sealed design has a minimal bearing interface ensuring smooth rolling and increased durability.
Shimano HG710 12-Speed Cassette 11-34T
SLX M7100 12-Speed Micro Spline MTB cassette featuring light weight minimal design sprocket carrier. Hyperglide sprockets have a computer designed tooth configuration with contoured shift gates, resulting in a crisp smooth shift even under load.
- Groupset weight: 2300g excluding rotors
- Quick and intuitive rear shifting operation
- Redesigned internal shifting unit
- 2x12 groupset designed for gravel racing
- Greater reach adjust range
- Easier access to inner shift cable 15 mm of reach adjustment of screw type
- Reliable performance in race conditions
- Rear derailleur features on/off clutch control
- Four-arm crankset design
- Shimano GRX ST-610 12-speed Hydraulic Brake Levers & Shifters
Note: left lever controls rear brake, British setup - Shimano GRX BRRX400 Calipers with Hydraulic Hoses
- Shimano GRX FC-RX610 2X12-speed Chainset
- Note: Chainset is available in a range of crank lengths and sizes, please select you size
- Shimano SLX CS-M7100 12-speed Cassette, 11-34T
- Shimano M6100 12-speed Chain, 126L with quick link
- Shimano GRX RD-RX820 12-speed Rear Derailleur
- Shimano GRX FD-RX820 12-Speed Front Derailleur, braze-on
- Shimano Ultegra BB-R60 Bottom Bracket
- Shimano Gear Cable Kit included
- Hydraulic brakes are supplied with hoses, pre bled, ready for installation
-
Brakes are set up with left lever/rear brake and right lever/front brake
- NOTE: other bottom bracket cups are available if you require Italian thread, T47/86 or T47A please contact us
- NOTE: Shimano rotors are not included
- If you do not have a braze-on mounting on your frame you can purchase a band suitable for your frameset size here
-
Gravel cycling is rooted in its simplicity, inclusivity, and curiosity. Everyone from first-timers to grizzled veterans counts on Shimano GRX, the industry’s first gravel-specific groupset, for smooth shifting, reliable braking, and exceptional gravel comfort.
The new RX610 series offers 12-speed gearing and performance at an incredible value, with thoughtful ergonomic designs and gravel-centric gearing for all manners of unpaved adventures. The 610 2x12 groupset uses a mix of mid-level components alongside top tier GRX 820 parts to deliver precise and reliable mechanical shifting with different gearing ranges to cover the full spectrum of riders and rides.
Shimano GRX RX610 Shifters
Unmatched comfort and control for mixed-terrain riding and racing. The Shimano GRX 610 is based around the Shimano 105 shifter and borrows materials from GRX 820 shifters. It delivers light and responsive shifting for mixed-terrain riding. The textured hood and anti-slip brake lever surface increase control on bumpy terrain.
Shimano BR-RX400 Brake Calipers
BR-RX400 is a flat-mount brake caliper with pre-bled hoses. Whilst they do not have ceramic pistons, as found on the top tier GRX 820 groupset. Shimano's powerful braking has been proven in gravel racing around the world. Rotors are not included, please select the size of rotor suited to your bike.
Shimano FC-RX610-Double Chainset
GRX cranks have a chainline that’s 2.5mm wider than that of Shimano’s road cranks. (Chainline is the distance from the centre-line of the bike to the middle of the chainring on a 1× setup, or to a point halfway between the two chainrings on a 2× crankset.) This increases tyre clearance and works better with the wider rear spacing found on some gravel bikes. GRX 820 Chainset features a four arm design, and the material is machined to reduce weight over other tiers of chainset.
Shimano CN-M6100 12-Speed Chain
The M6100 chain provides enhanced chain retention thanks to an extended portion of the inner plate. The new chain features quick-link assembly and SIL-TEC treatment for extended offroad durability.
Shimano GRX-RX820 Rear Derailleur
Designed specifically for use with a double chainset. The RX820 rear derailleur has an integrated chain stabiliser to deliver quieter shifting, better ground clearance and more secure chain management in rough terrain. The RD-RX820 is compatible with 11-34T and 11-36T cassettes, 12-speed SHIMANO MTB cassettes, and the chain tensioner has an ON/OFF switch for easy wheel removal.
Shimano GRX FD-RX820 12-Speed Front Derailleur
Lighter front shifting operation and easier setup for mixed-terrain riding. The Shimano GRX RX-820 front derailleur offers lighter front shifting operation and easier setup thanks to its toggle link construction and integrated cable tensioner. Features include a 2.5 mm outboard chain line design that provides wider tire clearance for mixed-terrain riding, and it accommodates a 17T front chainring range for wider gearing options.
Shimano BBR-60 Ultegra Bottom Bracket
The Shimano BBR60 Ultegra level Bottom Bracket English Thread Cups use Shimano HollowTech II technology which uses a wider outer bearing placement and larger axle diameter for increased stiffness and efficiency. While it's sealed design has a minimal bearing interface ensuring smooth rolling and increased durability.
Shimano HG710 12-Speed Cassette 11-34T
SLX M7100 12-Speed Micro Spline MTB cassette featuring light weight minimal design sprocket carrier. Hyperglide sprockets have a computer designed tooth configuration with contoured shift gates, resulting in a crisp smooth shift even under load.
- Groupset weight: 2300g excluding rotors
- Quick and intuitive rear shifting operation
- Redesigned internal shifting unit
- 2x12 groupset designed for gravel racing
- Greater reach adjust range
- Easier access to inner shift cable 15 mm of reach adjustment of screw type
- Reliable performance in race conditions
- Rear derailleur features on/off clutch control
- Four-arm crankset design
- Shimano GRX ST-610 12-speed Hydraulic Brake Levers & Shifters
Note: left lever controls rear brake, British setup - Shimano GRX BRRX400 Calipers with Hydraulic Hoses
- Shimano GRX FC-RX610 2X12-speed Chainset
- Note: Chainset is available in a range of crank lengths and sizes, please select you size
- Shimano SLX CS-M7100 12-speed Cassette, 11-34T
- Shimano M6100 12-speed Chain, 126L with quick link
- Shimano GRX RD-RX820 12-speed Rear Derailleur
- Shimano GRX FD-RX820 12-Speed Front Derailleur, braze-on
- Shimano Ultegra BB-R60 Bottom Bracket
- Shimano Gear Cable Kit included
- Hydraulic brakes are supplied with hoses, pre bled, ready for installation
-
Brakes are set up with left lever/rear brake and right lever/front brake
- NOTE: other bottom bracket cups are available if you require Italian thread, T47/86 or T47A please contact us
- NOTE: Shimano rotors are not included
- If you do not have a braze-on mounting on your frame you can purchase a band suitable for your frameset size here
-
