Bivio Gravel
Discover new boundaries on our premium steel adventure frame
Deda Elementi Gravel100 RHM OEM Handlebar 42CM / BLACK ON BLACK
Hutchinson Touareg Gravel Tubeless Tyre 700X40C / BLACK/TAN
Interested in a bike?
Book an appointment
Handmade in Italy
Built by hand since 1948.
5 Year Warranty
We've got you covered.
Bike Fitting Included
Simply visit us in store.
Frame
Columbus Spirit HSS triple-butted steel, 2100g
Fork
Condor Gravel full carbon monocoque, 450g
Tyre Clearance
Up to 42mm (700c) or 47mm (650b)
Fit
Fast endurance
Brake Type
Flat mount disc
Mudguards and Rack
Mounts for full mudguards and rear rack
About this model

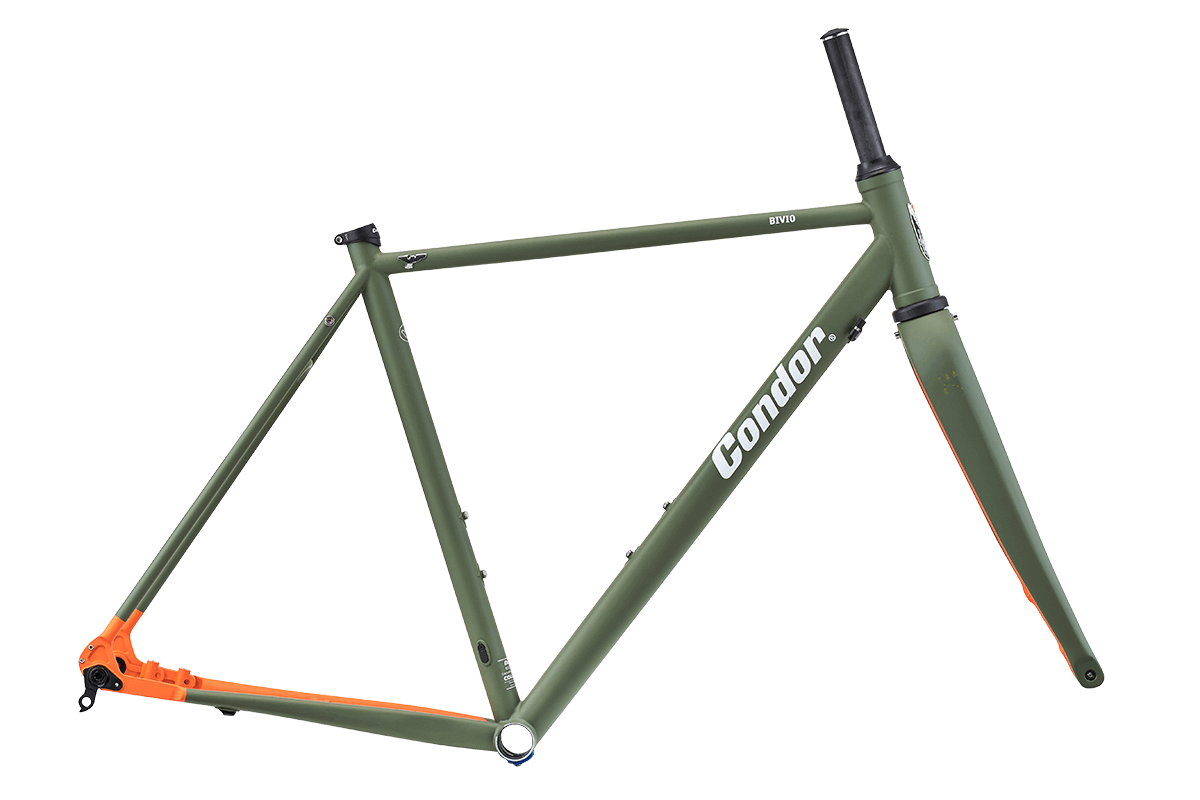

The Bivio Gravel was born for adventures across land, desert, and ice. Cruise over Tarmac-free roads or adapt it to be your 'do anything' commuter. Built from triple-butted, custom-formed Columbus Spirit tubing, the Bivio Gravel provides no-hassle, smooth riding, mile after mile.
The Bivio-Gravel features our tried and tested adventure geometry, similar to our endurance road bike geometry, so you can cover distances quickly or just cruise around exploring. We tuned the head angle and wheelbase to give you stable handling over twisty roots and rocks.
The frame features multiple mounting options across the top tube and forks for more carry capacity, whether it be for hydration or bike-packing bags.
| 46 | 49 | 52 | 55 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Rider height guide (cm) | 150–160cm | 161–168cm | 169–175cm | 176–185cm | 186–193cm | 194–200cm |
| Rider height guide (in) | 4'11"–5'3" | 5'3"–5'6" | 5'6"–5'9" | 5'9"–6'0" | 6'0"–6'3" | 6'3"–6'6" |
| Seat tube (centre to centre) [A] (cm) | 41 | 44 | 47 | 50 | 53 | 56 |
| Seat tube (centre to top) [B] (cm) | 46 | 49 | 52 | 55 | 58 | 61 |
| Top tube (horizontal) [C] (cm) | 51.3 | 51.8 | 53.7 | 55.5 | 57 | 58 |
| Seat tube angle [D] (cm) | 74 | 73.5 | 73 | 73 | 73 | 72.5 |
| Head tube angle [E] (cm) | 71 | 71 | 72 | 72.5 | 72.5 | 73 |
| Head tube length [F] (cm) | 9 | 9.5 | 10.5 | 13.5 | 16.5 | 19.5 |
| Chainstay length [G] (cm) | 43 | 43 | 43 | 43 | 43 | 43.5 |
| Bottom bracket height [H] (cm) | 26.5 | 26.5 | 26.5 | 26.5 | 26.5 | 26.5 |
| Bottom bracket drop (mm) | 70 | 70 | 70 | 70 | 70 | 70 |
| Stack (cm) | 51.6 | 52.1 | 53.4 | 56.4 | 59.3 | 62.3 |
| Reach (cm) | 36.5 | 36.4 | 37.4 | 38.1 | 39.2 | 39.7 |
| Fork length (cm) | 39.8 | 39.8 | 39.8 | 39.8 | 39.8 | 39.8 |
| Fork offset (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
Geometry and frame dimensions given in centimeters
100x12mm thru axle (front) & 142x12mm thru axle (rear)
Clearance for 42mm (700c) or 47mm (650b) tyres
Bottom bracket: BSA
Seat tube (internal): 27.2mm
Seat tube (external): 31.8mm
Front derailleur attachment: band-on
Headset: ZS44/EC44
O.L.D.: 142mm
Thru-axles: 12x100mm (front); 12x142mm (rear)
Disc brake mounts: flat mount
If you would like to visit us in the store, here is how the process works.
1. Choose your model
We make a wide range to suit all styles and disciplines. Our full range is available to view online and in-store, but don't worry if you're not sure what's right for you — we're here to help!
2. Have a fitting
We'll ensure that you'll ride in complete comfort and get the best performance from your bike. If you can't visit us in store, we can help with the fit by phone or email.
3. Make it your own
We'll work with you to choose components that suit your requirements, right down to details such as handlebar tape colour. We are here to advise on everything.
4. We build it
We'll assemble your bike in London. Once built, we'll arrange a time and date with you for the handover, where we'll run through everything and help with anything else you may need.
If you can’t book an appointment to visit us in-store, we can help by phone, email, or live chat
Condor Smart Cabling
Our Smart Cabling system allows you to fit any groupset, whether it's mechanical or electronic. And if you want to change to Di2/EPS, mechanical, or eTAP in the future, you don't need to worry about messy cabling or compatibility.
Performance fork and 44mm head tube
We pair our performance steel with the lightest fork possible. Our gravel fork is full carbon monoccoque with integrated brake cable to keep it away from snagging branches and flying mud. Our 44mm head tube improves control around the technical trail and in slippery mud, so you have the confidence to stay off the brake and enjoy the ride.
Rust inhibiting treatment
After being welded, filed and cleaned, our steel frames are dipped in a rust inhibiting treatment. The treatment provides a degree of protection, particularly inside the frame, against corrosion caused by acidic substances (including water). Read more
Explore & grip whatever the surface
Carve corners with conviction and grip the dirt like you mean it. The frame boasts 43mm clearance and is 650b compatible, too, should comfort be your focus. Or choose 40mm tyres from our favourite tyre brands for a race-ready setup.
Custom steel designed by Condor, made by Columbus
Columbus Spirit HSS is the highest level of steel produced by Columbus. The tubes are seamless, which means the tube is formed by stretching it without welding a joint. The tubes are triple-butted with a high tensile strength, and hardened using precipitation, enabling the tube to have an excellent surface and strength to weight ratio. The tubes are head treated to improve strength and resistance to damage.
