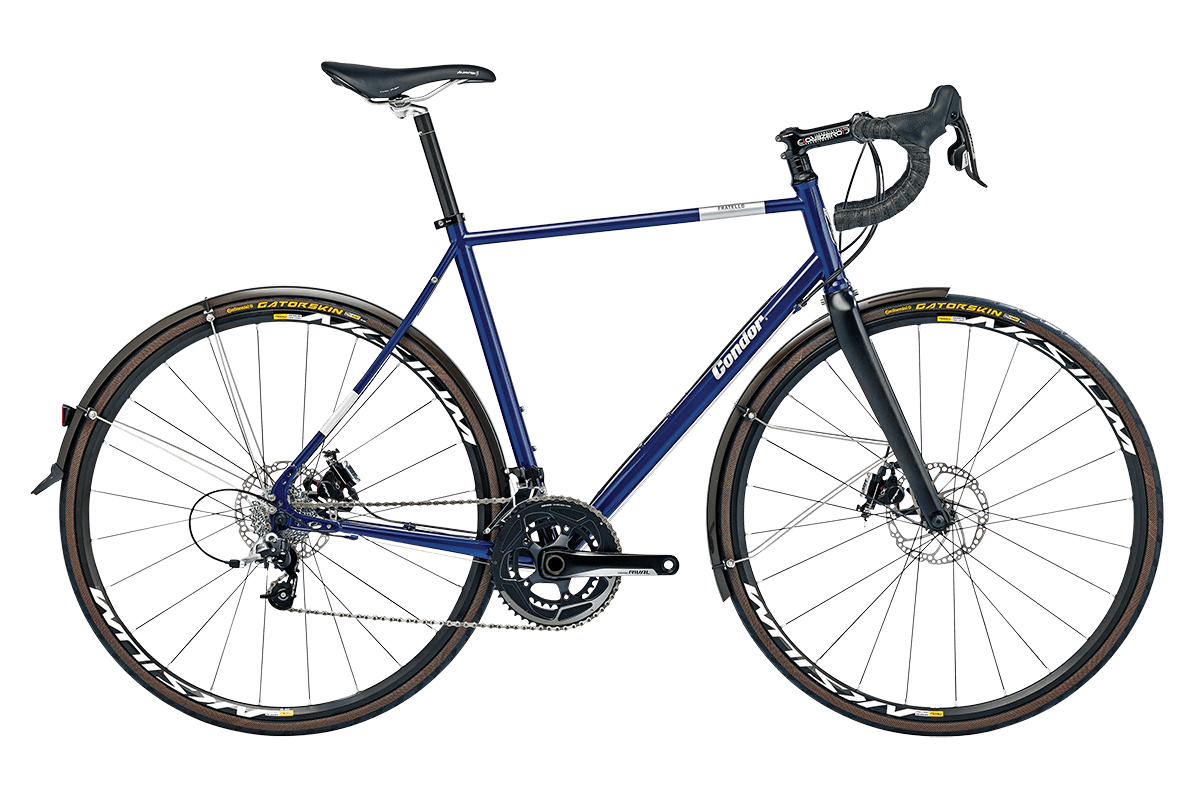

Fratello Disc
Our signature steel all-rounder with disc brakes
Interested in a bike?
Book an appointmentHandmade in Italy
Built by hand since 1948.
5 Year Warranty
We've got you covered.
Bike Fitting Included
Simply visit us in store.

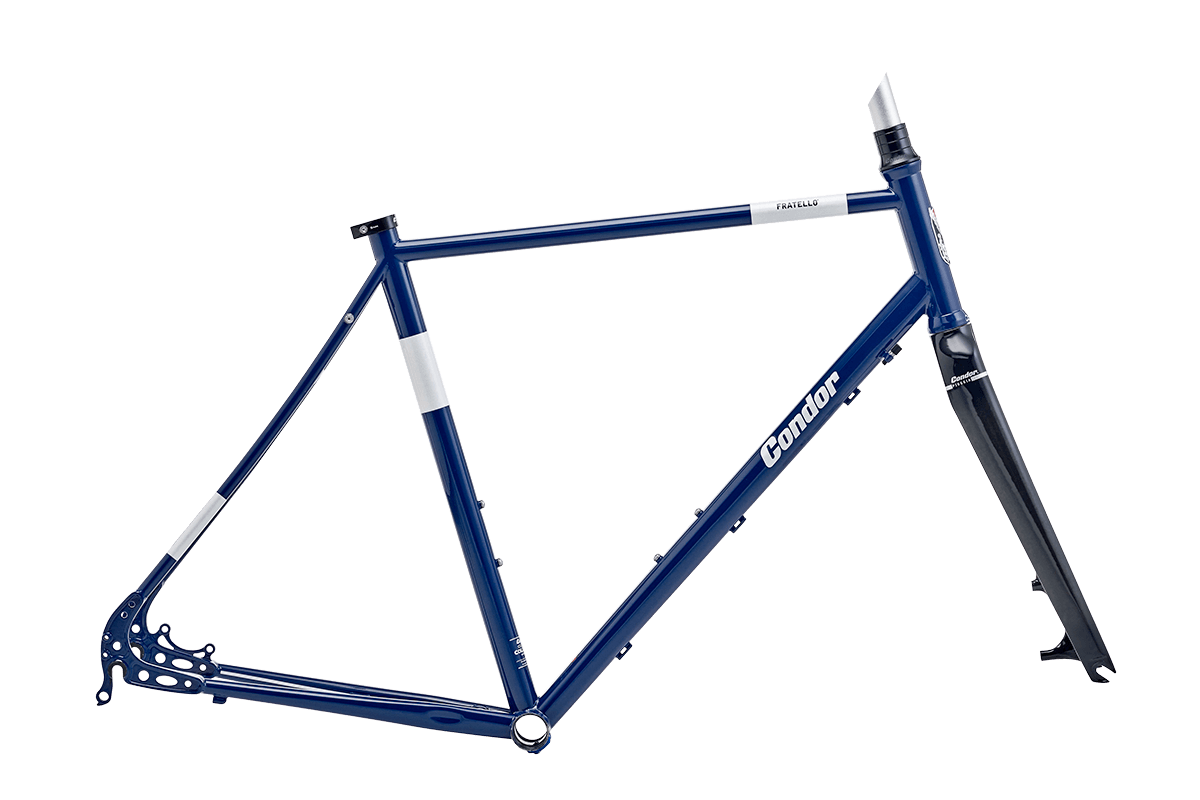

Frame
Columbus Spirit triple-butted steel, 1950g
Fork
Condor Pioggia Disc full carbon monocoque, 430g
Tyre Clearance
Up to 28mm
Fit
Endurance
Mudguards
Mudguard and rack compatible
Brake Type
Post-mount disc brakes with quick release skewer
About this model
Our flagship steel frame is as popular as ever, and the original superbike is now even better! Used as a commuter by some, fast tourer or winter trainer by others, its inherent versatility makes it ideal if you don't have space for a stable of bikes. The disc mounts are placed inside the rear triangle to ensure the bicycle can be used with pannier bags and mudguards. Custom drawn and shaped tube sections used at the seat stays create a responsive frame that minimises rider fatigue and maintains ride quality. The latest model uses lighter and smoother, custom-shaped Columbus Spirit tubing. This responsive triple-butted steel is lively and exciting to ride, whatever the weather.
46 | 49 | 52 | 55 | 58 | 61 | 64 | |
---|---|---|---|---|---|---|---|
Seat tube (centre to centre) [A] (cm) | 42 | 45 | 48 | 51 | 54 | 57 | 60 |
Seat tube (centre to top) [B] (cm) | 46 | 49 | 52 | 55 | 58 | 61 | 64 |
Top tube (horizontal) [C] (cm) | 51.3 | 51.8 | 53.7 | 55.5 | 57 | 58 | 59 |
Seat tube angle [D] (cm) | 75 | 74 | 74 | 73.5 | 73 | 72.5 | 72.5 |
Head tube angle [E] (cm) | 71 | 71.5 | 72 | 73.5 | 73.5 | 73.5 | 73.5 |
Head tube length [F] (cm) | 11 | 12 | 14.5 | 17.5 | 20.5 | 23.5 | 25.5 |
Chainstay length [G] (cm) | 42.5 | 42.5 | 42.5 | 42.5 | 43 | 43 | 43.5 |
Bottom bracket height [H] (cm) | 26.5 | 26.5 | 26.5 | 26.5 | 26.5 | 26.5 | 26.5 |
Bottom bracket drop (mm) | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
Stack (cm) | 51.8 | 52.9 | 55.4 | 58.8 | 61.7 | 64.6 | 66.5 |
Reach (cm) | 37.4 | 36.6 | 37.8 | 38.1 | 38.1 | 37.6 | 38 |
Fork offset (mm) | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
Fork length (cm) | 37.8 | 37.8 | 37.8 | 37.8 | 37.8 | 37.8 | 37.8 |
Bottom bracket: BSA
Seat tube (internal): 27.2mm
Seat tube (external): 31.8mm
Front derailleur attachment: band-on
Headset: 1-1/8" integrated
O.L.D.: 135mm
Disc brake mounts: post (front), I.S. (rear)
If you would like to visit us in the store, here is how the process works.
1. Choose your model
We make a wide range to suit all styles and disciplines. Our full range is available to view online and in-store, but don't worry if you're not sure what's right for you — we're here to help!
2. Have a fitting
We'll ensure that you'll ride in complete comfort and get the best performance from your bike. If you can't visit us in store, we can help with the fit by phone or email.
3. Make it your own
We'll work with you to choose components that suit your requirements, right down to details such as handlebar tape colour. We are here to advise on everything.
4. We build it
We'll assemble your bike in London. Once built, we'll arrange a time and date with you for the handover, where we'll run through everything and help with anything else you may need.
If you can’t book an appointment to visit us in-store, we can help by phone, email, or live chat
Internal routed fork cable
Internally routed disc brake cable reduces cable snagging, maintains optimum braking, and enables easy fitting of mudguards.
Curved rear stays
Custom curved stays with ride-tuned sweep and shape increases the compliance for a smooth all day ride.
Designed for wide tyres and guards
Get the grip and comfort benefits of 28mm wide tyres without having to forgo full mudguards.
Rust inhibiting treatment
After being welded, filed and cleaned, our steel frames are dipped in a rust inhibiting treatment. The treatment provides a degree of protection, particularly inside the frame, against corrosion caused by acidic substances (including water). Read more
